CL LED displays power supply 250W PAS1-250-5 series,Ultra-thin and high-efficiency with PFC

Description

CL LED Displays Power Supply 250W PAS1 Series Features:

Universal AC Input / Full Range
Conversion efficiency up to 90%
Coolingby free air convection, super quiet
Output Overload, Overvoltage, Short Circuit, Protection,
Over Temperature Protection
Working temperature: -30～+70℃
Storag temperature: -40～+85℃
Safety: GB4943, EN60950, UL60950
EMC:GB9254,GB17625,EN55022 FCC Part 15B
The product has passed CE, 3C certification
3 Years Warranty

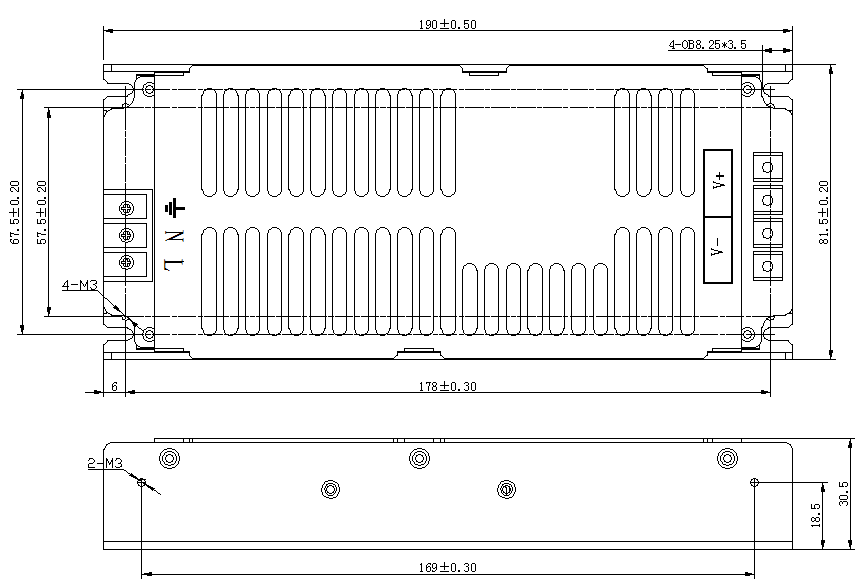

Dimension (L*W*H): 190*81.5*30mm

Model: CL-PAS1-250-5
Input：90-264 Vac.
Output:5V/40A
Ripple & noise: ≤150mV
Efficiency: 90%
