Huidu advertising machine special Led display controller HD-b6 led multimedia card
$170.00
HD-B6 is a four in one led display player integrating synchronous playback, asynchronous playback and video zooming of U-disk playback box. Huidu professional LED video controller, is designed specially to meet the needs for your rental stage and fixed led displays.
- Description
- Inquire Now
Description
Advertising Machine Special Controller HD-B6
HD-B6 is a four in one player integrating synchronous playback, asynchronous playback and video zooming of U-disk playback box. A card supports 1.3 million pixel points, 8GB on-board storage space, Wi-Fi module as standard, support HDMI splicing display.
Huidu HD-B6 Advertising Machine Special Controller Parameters:
| Features | Parameters |
| Module Type | Compatible with indoor and outdoor full color and single color module
Support conventional chip and mainstream PWM chip |
| Scan Mode | Static to 1/64 scan mode |
| Control Range | One B6 control range: 1.3 million pixel, widest 3840, highest 2048;

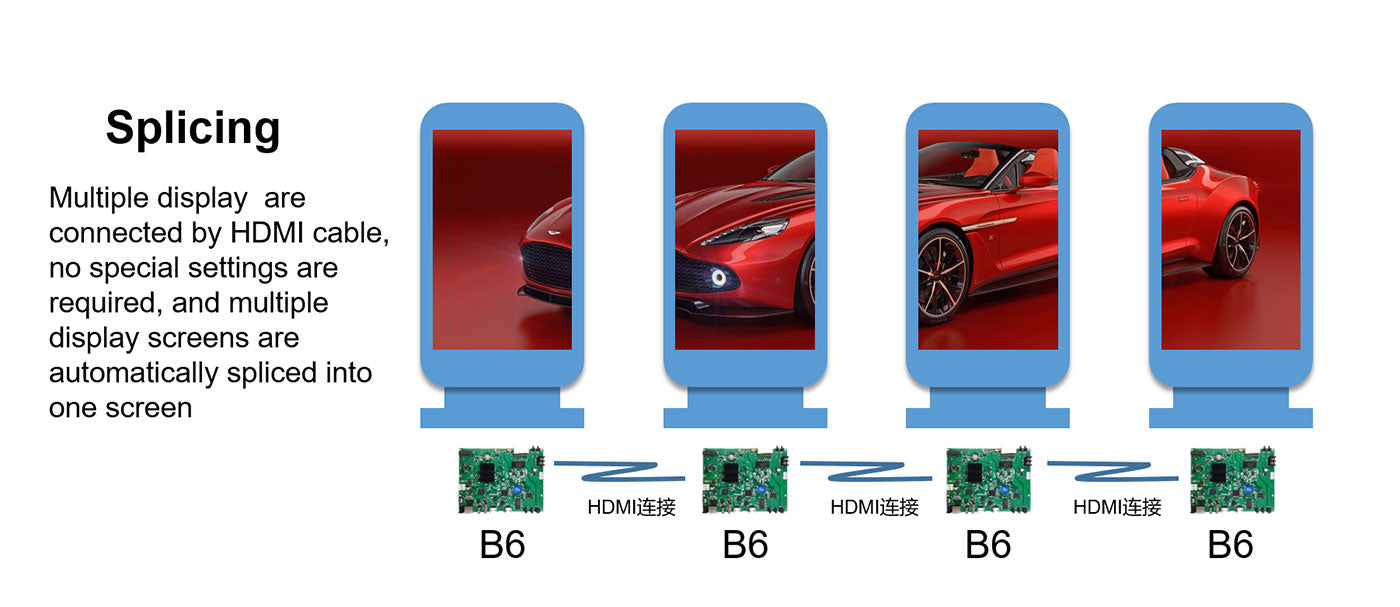

HDMI multiple B6 splicing control range: 2.3 million pixel, widest 3840, highest 4096. |
| Gray Scale | 256-65536 (adjustable) |
| Basic Functions | Video, Pictures, Gif, Text, Office, Clocks, Timing, etc.

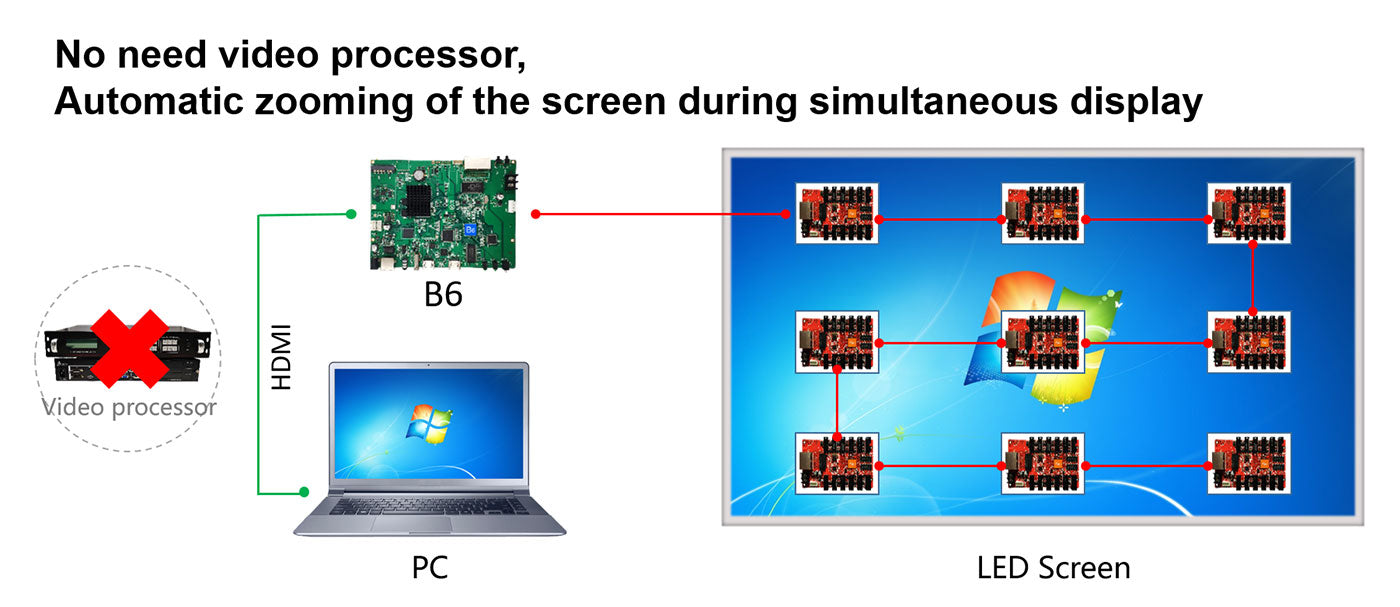

Remote, Temperature, Humidity, Brightness, PM Value, etc. Support Synchronized picture auto-zooming, Playing live screen without video processor. |
| Video Format | HD video hard decoding, 60Hz frame rate output.
AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
| Image Format | Support BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, XPM, XBM, etc. |
| Text | Text editing, Image, Word, Txt, Rtf, Html, etc. |
| Document | DOC, DOCX, XLSX, XLS, PPT, PPTX, etc.
Office2007 Document format |
| Time | Classic Analog Clock, digital clock and various of clock with image background |
| Audio output | Double track stereo audio output |
| Memory | 8GB Flash Memory, Expanding memory by U-disk |
| Communication | 100M/1000M RJ45 Ethernet, Wi-Fi, 3G/4G, LAN, USB |
| Working Temp | -40℃-80℃ |
| Port | IN：12V Power Adapter*1, 1Gbps RJ45*1, USB 2.0*1, Test Button*1, GPS, 4G(Optional), Sensor port*1, HDMI*1
OUT：1Gbps RJ45*1，AUDIO*1，HDMI*1 |
| Power | 18W |
Huidu HD-B6 Advertising Machine Special Controller Features：
LED Multimedia Card B6
Loading Capacity ：130,000 pixels(1280 * 1024), widest 3840, highest 2048
Processing Capacity ：8GB storage, support U disk expansion and insertion;

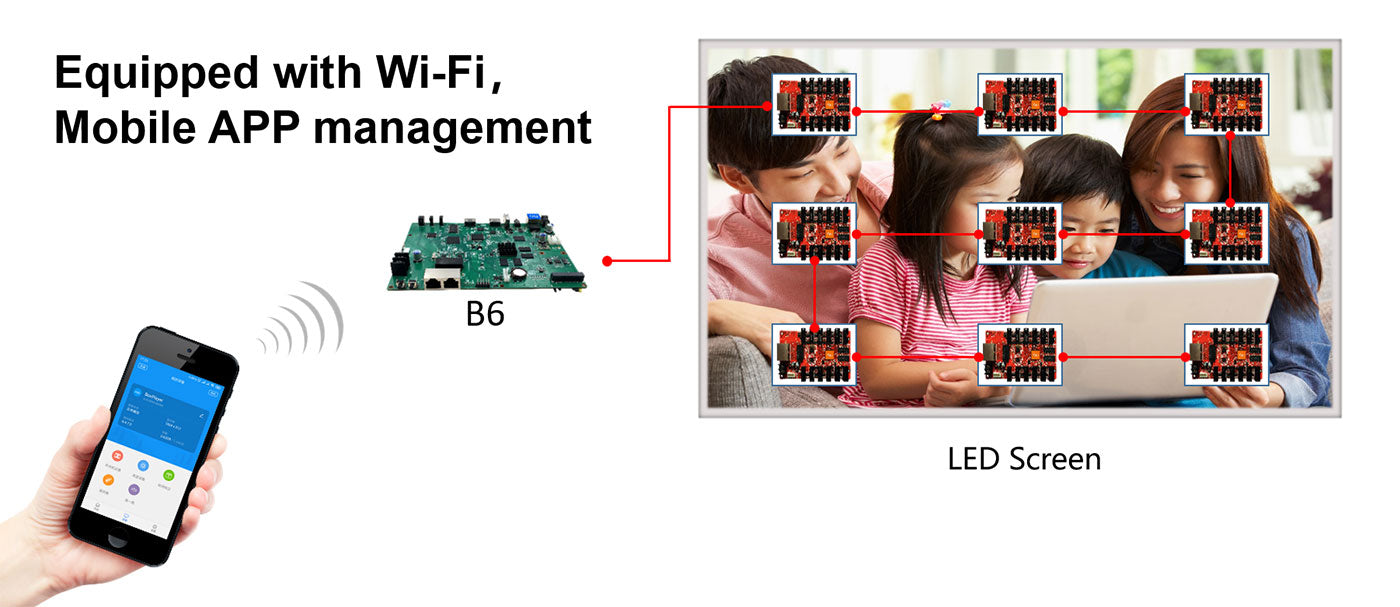

Wi-Fi ：√（dual wifi）
3G、4G ：√(Optional)
Output: HDMI
