Huidu R series LED receiving card HD-R508T R512T R516T R612 R712 LED display controller
$12.00 – $16.00
R712 is an LED display receiving card that supports both synchronous and asynchronous control led screen system, no need HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels for the led wall panels.
- Description
- Additional information
- Inquire Now
Description
HUB75E Port Receiving Card HD-R712
R712 is an LED display receiving card that supports both synchronous and asynchronous control system, no need HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.
- 1. Integrated with 12 lines HUB75E port
- 2. Ultra loading capacity, conventional chip recommended 128*768 pixels, PWM chip recommended 256*512 pixels
- 3. Support data group exchange and data group offset setting
- 4. Support any scan module within static~1/128 scan
- 5. Support multi-card cascade, arbitrary order
- 6. Support data group exchange and data group offset setting
HUB75E Port Receiving Card HD-R712 Dimensions:
HUB75E Port Receiving Card HD-R712 Connection Method:
| Features | Parameters |
| With sending card | Dual-mode sending box, Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Scan mode | Supports any scanning method from static to 1/128 scan |
| Communication method | Gigabit Ethernet |
| Control range | Maximum loading capacity: 262,144 pixels (512*512)
Recommended loading capacity: conventional chip 128*1024 pixels, PWM chip 256*1024 pixels Note: The actual loading capacity is related to the number of HUB ports/module resolution. |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5, Cat6 network cable within 80 meters |
| Port | DC 5V Power*2, Gbps Ethernet port*2, HUB75E*12 |
| Input voltage | 4.0V-5.5V |
| Power | 5W |
HUB75E Port Receiving Card HD-R612
The R612 is a dedicated receiving card for the module with LS9929/9919 chip.
It can also be used as a conventional receiving card with a limit control range
of 128*1024.

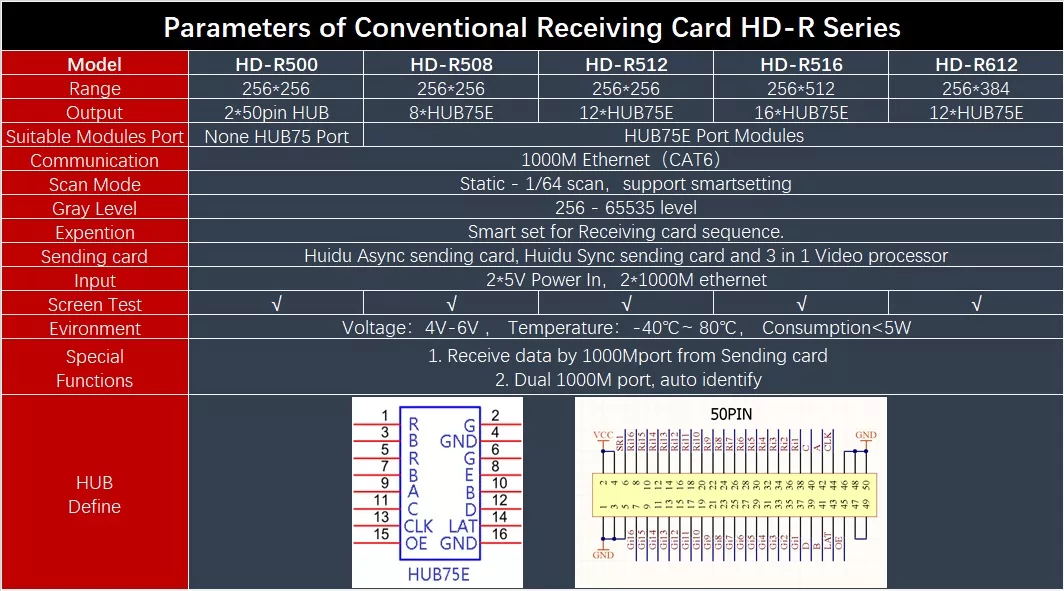

R500(2*HUB50pin), R508(8*HUB75), R512(12*HUB75), R516(16*HUB75), R612(12*HUB75)
Work with Huidu sending cards Ax,A60x, A30/A30+, Cx5, Cx0,A3, T901/T901B, VP210, VP410.
HUB75E Port Receiving Card HD-R516T
HD-R516T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 16 lines HUB75E port.
- Integrated with 16 lines HUB75E port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*768/ 128*1024
HUB75E Port Receiving Card HD-R512T
HD-R512T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 12 lines HUB75E port.
- Integrated with 12 lines HUB75E port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 256*512/ 128*768
HUB75E Port Receiving Card HD-R508T
HD-R508T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 8 lines HUB75E port.
- Integrated with 8 lines HUB75E port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*512
Additional information
| Model Number | R712, R612, R516T, R512T/R712, R508T |
|---|
