Magnimage Cyclone series LED video wall controller MIG-CL9400 LED video splicer
$700.00 – $4,500.00
As a powerful video splicing machine, MIG-CL9400 is the CPU of the big led screen mosaic system. It supports multiple input signals, splice, zoom, open windows, overlay, roam at different kinds of led video screens. It is designed specially to meet the needs for rental and street led displays.
- Description
- Additional information
- Inquire Now
Description
MIG-CL9400 Cyclone Chassis Video Wall Controller
As a powerful video splicing machine, MIG-CL9400 is the CPU of the big screen mosaic system. It supports multiple input signals, splice, zoom, open windows, overlay, roam at different kinds of screens. The hardware build-ups are based on advanced FPGA array and high speed digital bus-matrix. As for all kinds of input signal, it is able to recover the original one by its RGB 24bits/60 Hz internal processor. At the same time, its prominent image scaling engine ensures clear seamless splicing without delay.
Deeply modular design, support VGA DVI SDI IP HDMl(2K/4K) DP(4K) input signal, input EDID management. DVI and SDI output resolution can be customized, for any LED screen pixel-to-pixel display. The whole series support USB upgrade and network/RS232 control, easy for after-sale service and technical support. Multiple input/output configuration for different projects, 3U/4U/8U chassis is available.
MIG-CL9400 series products are widely used in government, transport, education, hydroelectric, broadcasting & TV and shopping mall, like multi-media conference room, multi-functional hall, monitor center, studio, exhibition center, opera and so on.
Deeply modular design, support VGA DVI SDI IP HDMl(2K/4K) DP(4K) input signal, input EDID management. DVI and SDI output resolution can be customized, for any LED screen pixel-to-pixel display. The whole series support USB upgrade and network/RS232 control, easy for after-sale service and technical support. Multiple input/output configuration for different projects, 3U/4U/8U chassis is available.
MIG-CL9400 series products are widely used in government, transport, education, hydroelectric, broadcasting & TV and shopping mall, like multi-media conference room, multi-functional hall, monitor center, studio, exhibition center, opera and so on.
- Pure FPGA hardware architecture
- 4 independent layers per output
- Supports mosaic for over 8 times scaled
- Supports different pixel pitch led screen mosaic
- Internal 24 bit RGB processing
- 60Hz real-time processing
- Input EDID management
- 4KX2K/8KX1 K@60Hz input
- Real-time seamless switching
- Caption & label
- Freely adjustment for the windows’ size and position
- Layer full screen roaming
- Customized output resolution
- Pixel to pixel display HD backgrounds
- Dual redundant power supply
- System running real-time monitoring
- Projector edge blending mosaic
- Fade effect among layers
- Layer grouping
MIG-CL 9400 Presentation

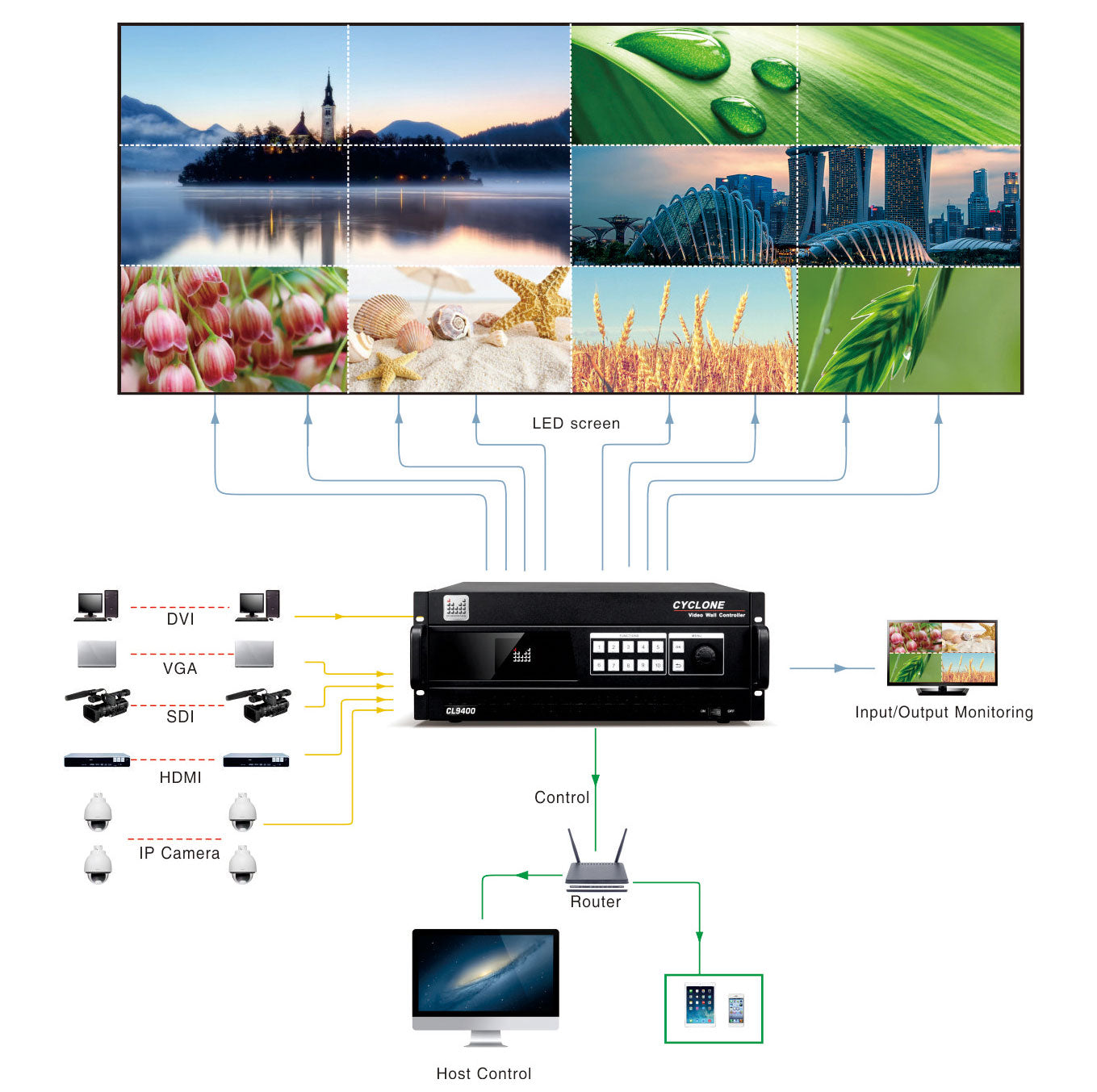

High resolution LED wall mosaic
High resolution LED Wall mosaic will be realized with corresponding sending cards and the machine’s output customization.
One 3U chassis machine supports 12 panels mosaic at most; 4U chassis supports 20 at most; 8U chassis supports 32 at most.
No frame drop or image tear. Supports 4Kx2K/8Kx1K DP input and high resolution pixel-to-pixel display.

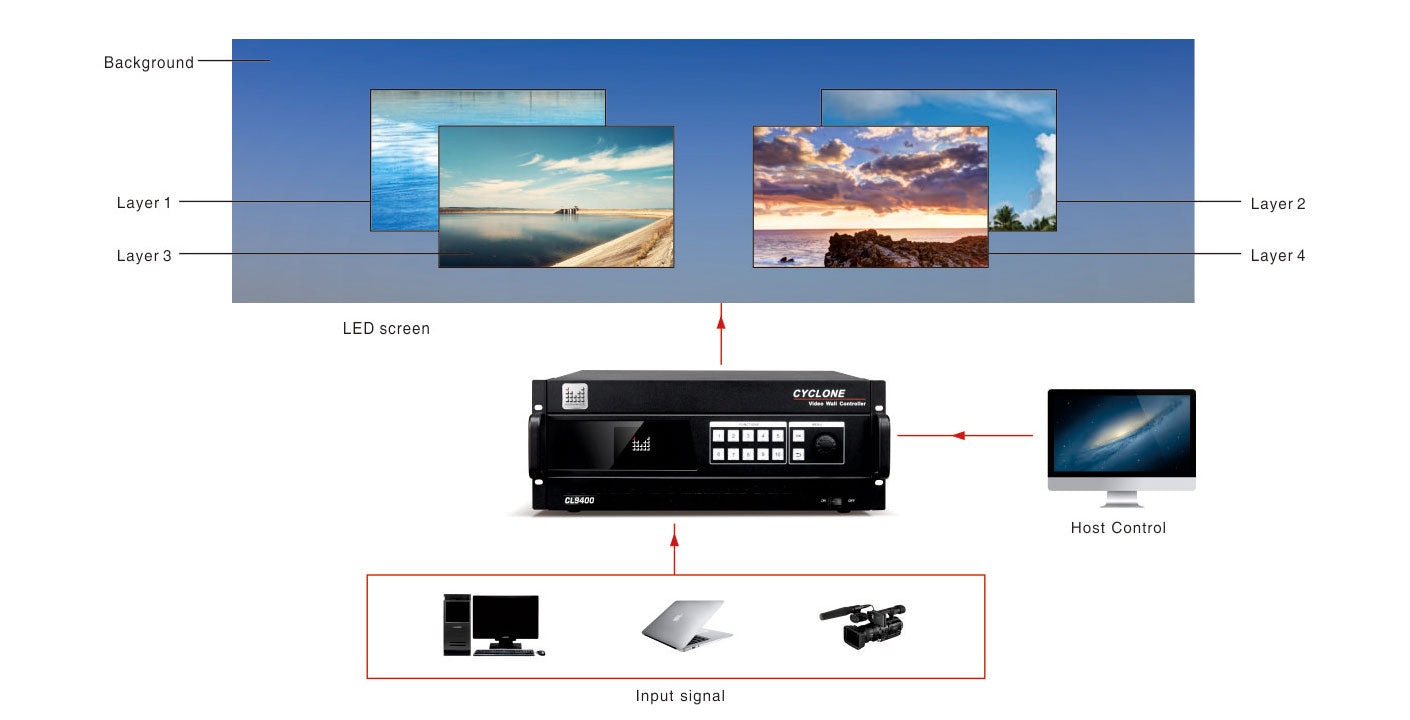

4 independent layers output by 1 output
One DVI output can display 4 independent layers and one high definition background.
The position, size and order of each layer can be set freely.
Input signal of any layer can also be set freely with the machine’s inner video matrix.
Caption & label
User can set the caption’s size, color, moving speed, background color without PC or USB memory disk,also insert a picture to serve as a label.
Label function(letter or image) allows you mark the layers by words to help memorizing and selecting the right layer exactly and rapidly.

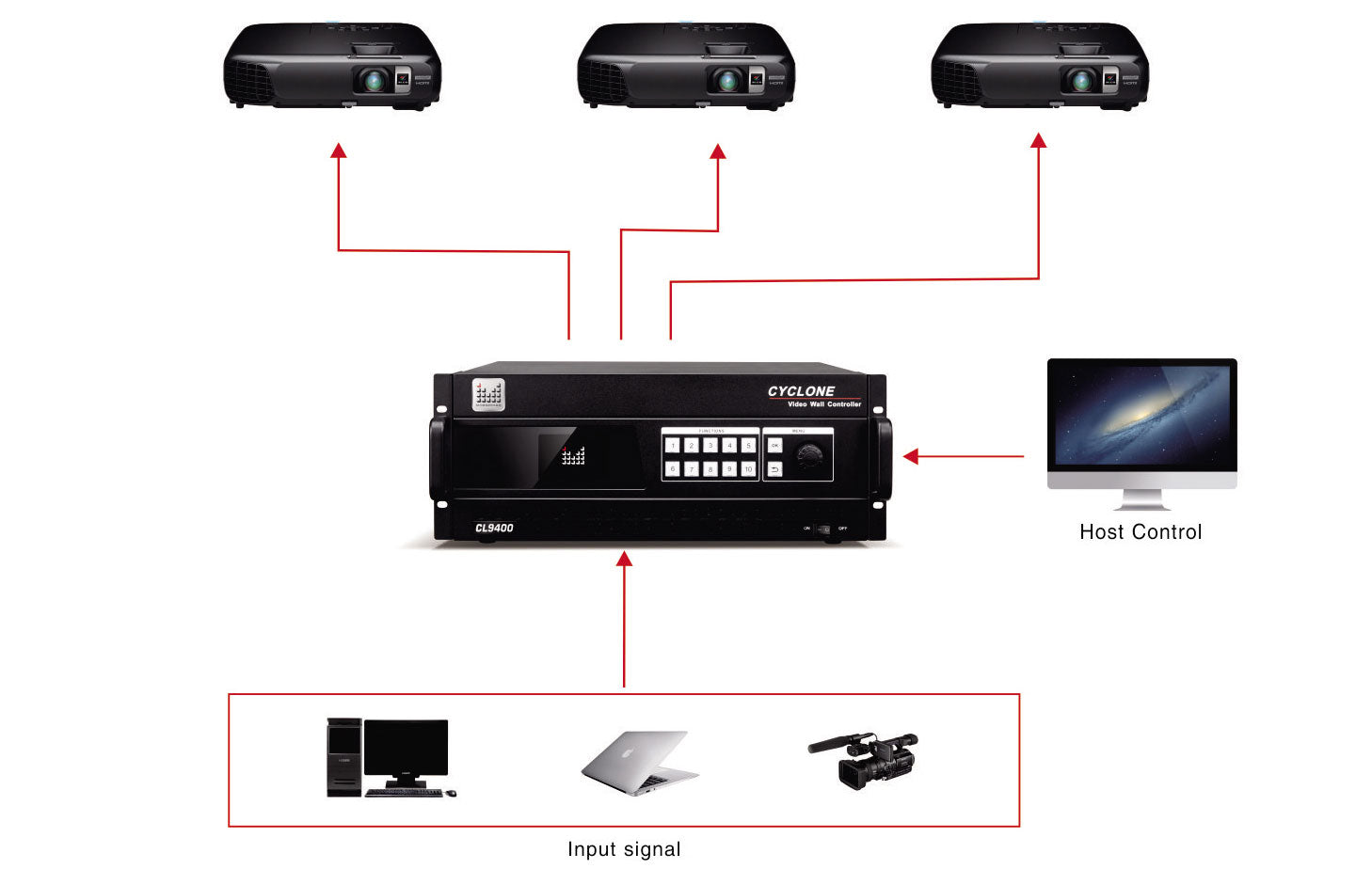

Projector edge blending mosaic
One 3U chassis machine supports 12 times mosaic at most, one 4U chassis controller supports 20 projectors mosaic at most;
one 8U chassis controller supports 32 projectors mosaic at most.
Size, position, transparency and other parameters of the blending parts can be changed via edge blending function.

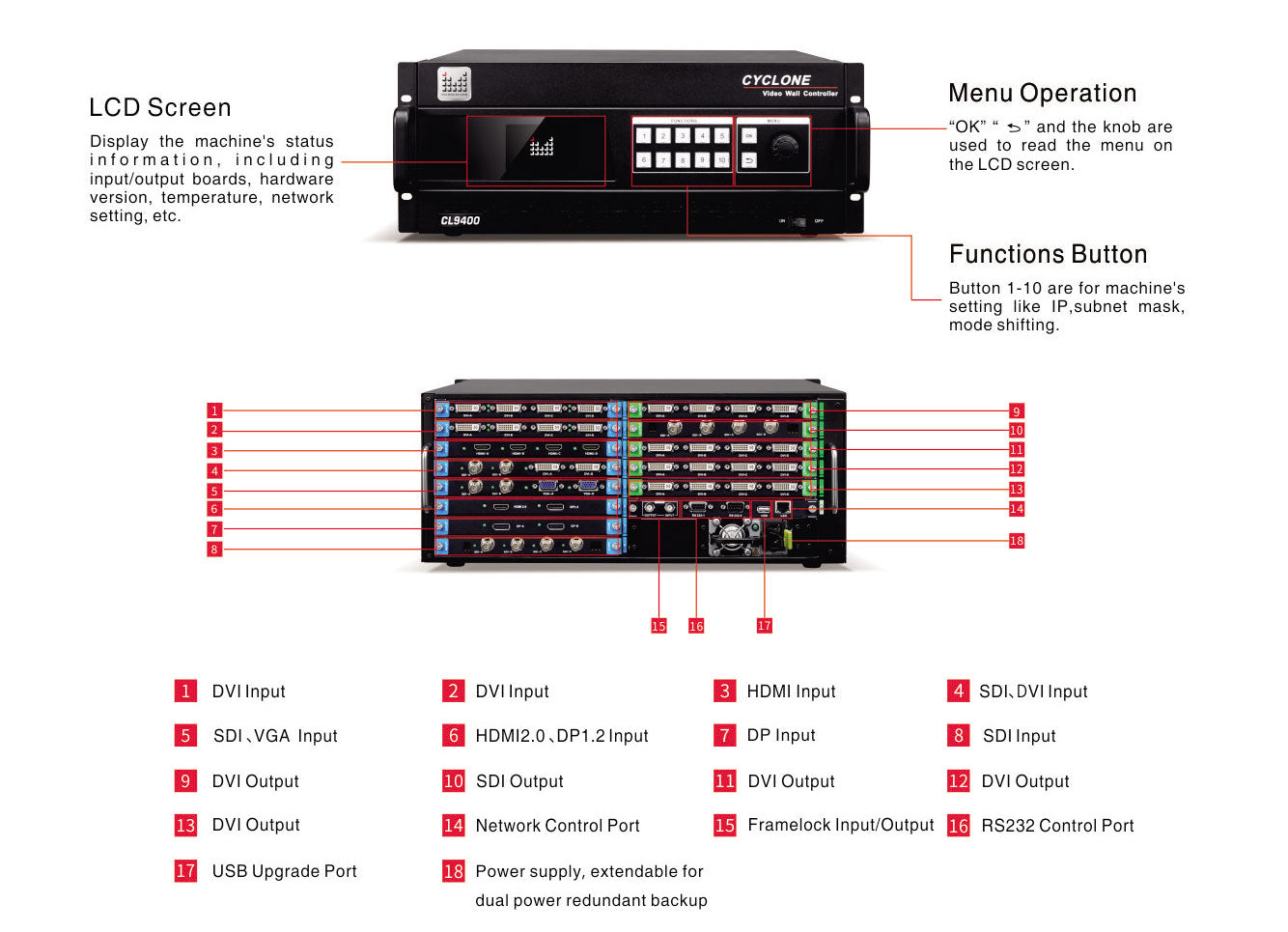

Chassis specification
| Chasis | 3U | 4U | 8U |
|---|---|---|---|
| Input channels | 20 | 32 | 38 |
| Output channels | 12 | 20 | 32 |
| Power voltage | 110~240V | ||
| Power frequency | 50/60Hz | ||
| Operation temperature | 0~45℃ | ||
| Chasis N.W.(KG) | 9.6 | 11.0 | 18.85 |
| Overall power consumption(W) | 300 | 500 | 750 |
| Dimension(mm) | 482.6×371×133 | 482.6×371×177 | 482.6×355×430.5 |
Input card
| Input card type | Port type | Port quantity | Resolution |
|---|---|---|---|
| VGA | RGBHV | 4 | 1920×1080/60Hz |
| DVI | DVI-D | 4 | 1920×1080/60Hz& EDID management |
| HDMI | HDMI1.3 | 4 | 1920×1080/60Hz |
| 2SDI+2VGA | 3G SDI,RGBHV | 2+2 | 1920×1080/60Hz |
| SDI | 3G SDI | 4 | 1080i/60Hz,1080P/60Hz |
| DP | DP1.1 | 2 | 3840×1080/60Hz and EDID management |
| IP | H.264 | 2 | 1920×1080/60Hz |
| 2SDI+2DVI | 3G SDI,DVI-D | 2+2 | 1920×1080/60Hz |
| HDMI(4K)+DP(4K) | HDMI2.0,DP1.2 | 1+1 | 3840×2160/60Hz and EDID management |
Output card
| Output card type | Port type | Port quantity | Resolution |
|---|---|---|---|
| DVI | DVI-D(4 layers) | 4 | 1024×968/60Hz 1366×768/60Hz 1440×900/60Hz 1440×1440/60Hz 1280×1024/60Hz 1680×1050/60Hz 1600×1200/60Hz 1920×1080/60Hz 2560×816/60Hz Customized output resolution, horizontal max 2560, vertical max 2560. |
| DVI | DVI-D(Preview output) | 2 | 1920×1080/60Hz (Horizontally 9 windows) |
| DVI | DVI-D(12 layers) | 2×2 | 1920×1080/60Hz，2560×816/60Hz，1440×1440/60Hz& EDID management |
| SDI | SDI(4 layers) | 4 | 1080i/60Hz,1080P/60Hz, 720P/60Hz |
| IP | H.264 | 1 | IP Monitoring |
Additional information
| Model Number | CL9403 Main Frame, CL9404 Main Frame, CL9408 Main Frame, DVI x 4 Intput Card, HDMI x 4 Intput Card, 3G-SDI x 4 Intput Card, HDMI2.0 \u0026 DP1.2 Intput Card, DVI x 4 Output Card |
|---|
