Magnimage MIG-ES8000 series led display video seamless switcher

Description

MIG-V8 is the latest Magnimage high performance video switcher，using a large storage high speed FPGA and hardware structure with high speed digital bus matrix, which adopt RBG 24bits/60Hz processing inside.
Built-in a high performance zoom core, MIG-V8 supports Multiple screens output seamless splicing, makes output signal clearer , delicate, colorful and ensures the output signal synchronous and no latency. It adopts mixed matrix input, various 4k, 2k input customized module options, supports 4K*2K/60Hz 4:4:4 input and real-time preview to the input and output signal.
Cooperates with consoles like MIG-HS, MIG-V6 it can realize fade-in/out switching among multiple layers and scenes, it was widely used in car exhibition, business conference and stage show, etc.

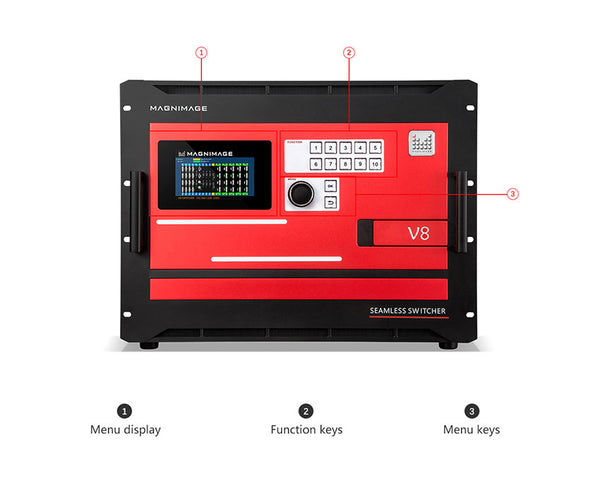

Functions and features:

MIG-V8 Series Video Seamless Switcher

• Input ports

The 9 input slots allow you to build the machine based on your application.
2K options include DVI, HDMI, VGA, SDI card and VGA/SDI mixed card.

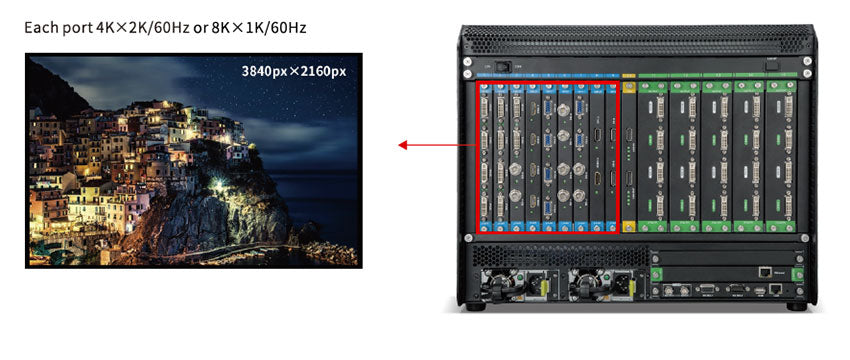

4K options include DP card DP/HDMI mixed card.

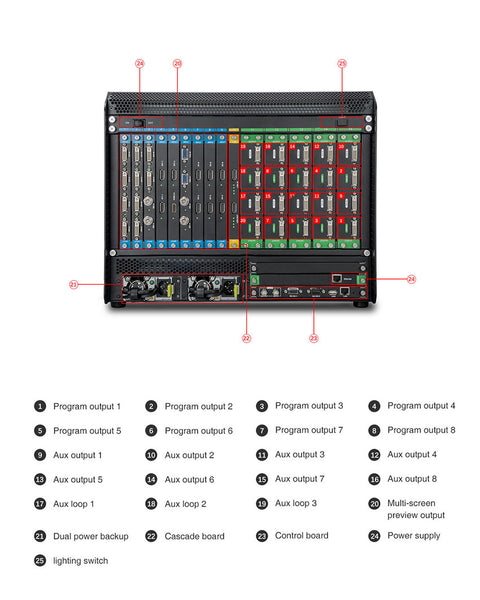

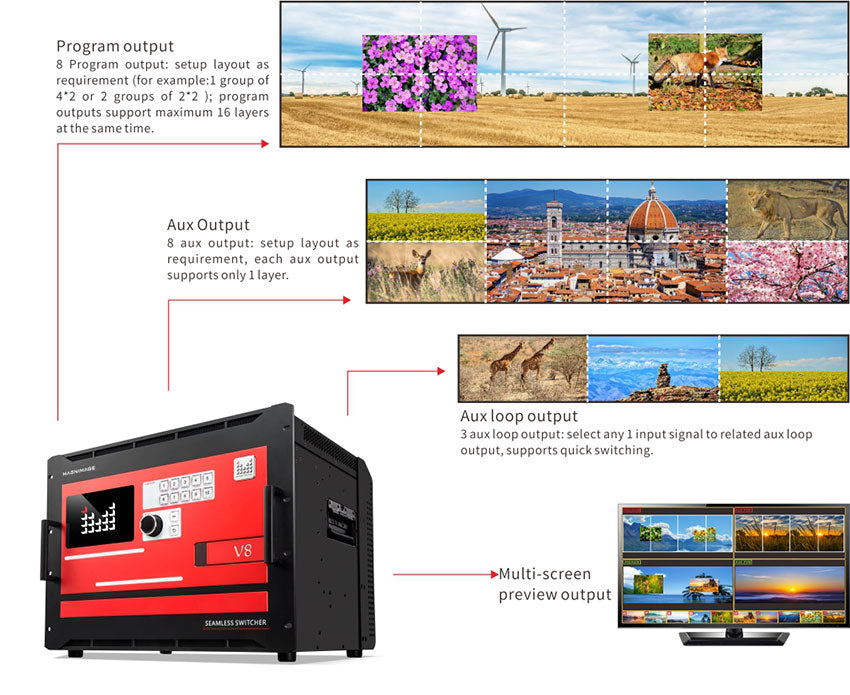

• Output ports

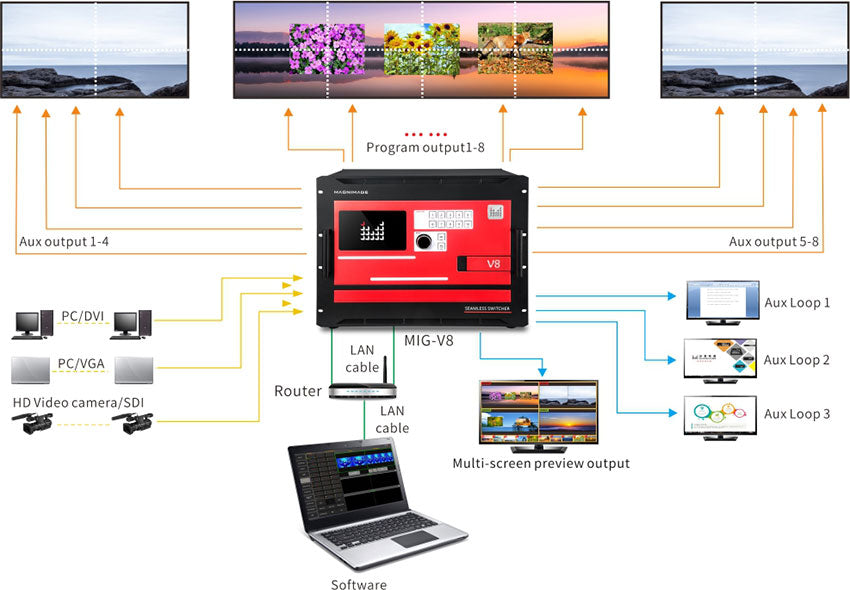

• V8 cooperates with software

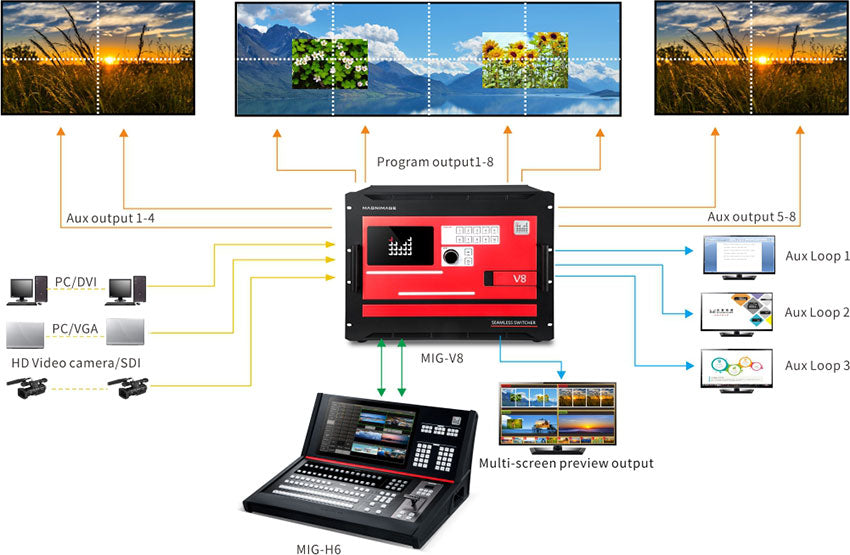

• V8 cooperates with H6

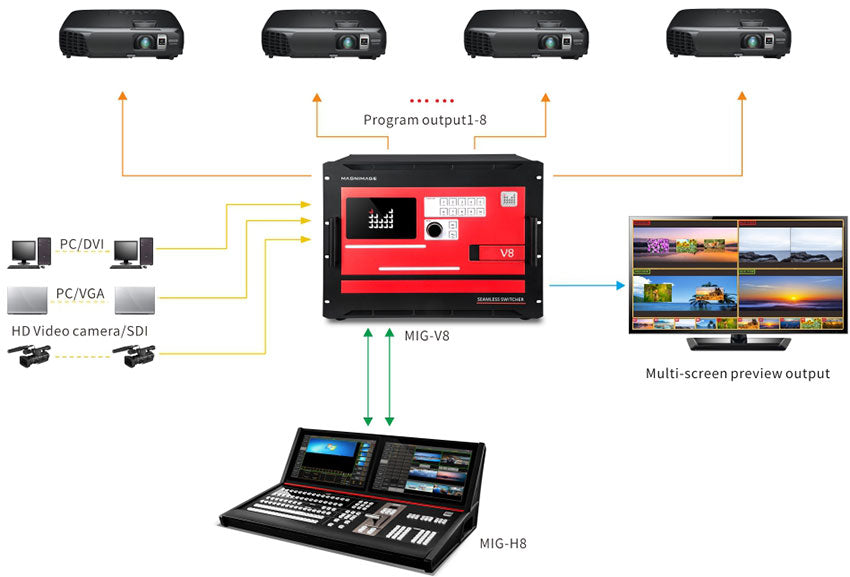

• V8 projection blending mosaic

Each output port’s blending size, position, blending direction, gamma rate can be setup separately,it’s applicable for both program output and aux output;each V8 supports maximum 16 projectors for blending mosaic.

Specification
Power supply:100-240V AC 50/60Hz
Power consumption:690W
Product dimensions:482.6X 355.0 X 430.5mm
N.W:27.4Kg

Accessories

User manual X 1 Power cable X 2 DVI cable X 2 USB disk X 1 Quality certificate X 1 HDMI cable X 1 DP cable X 1 LAN cable X 2
