Meanwell ERP-200 series ERP-200-12 ERP-200-24 LED displays power supply
$36.00
ERP-200 series is a 200W single output enclosed type AC/DC power supply for indoor outdoor led displays . lt adopts an aluminum case and the interior is semi-potted, protecting the internal electronic components from rain splash and dust. With the complete protection functions, ERP-200 is suitable for the applications such as outdoor LED channel letters, billboard advertising walls, commercial video display, etc.
- Description
- Additional information
- Inquire Now
Description
Meanwell ERP-200 Series LED Displays Power Supply
ERP-200 series is a 200W single output enclosed type AC/DC power supply . lt adopts an aluminum case and the interior is semi-potted, protecting the internal electronic components from rain splash and dust. With the complete protection functions, ERP-200 is suitable for the applications such as outdoor LED channel letters, billboard, commercial display, etc.
- 100% full load burn-in test
- 3 years warranty
- AC input 180~264VAC
- Cooling by free air convection
- Design against rain splash
- LED indicator for power on
- Low cost,high reliability
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Withstand 300VAC surge input for 5 seconds
Applications
LED strip lighting
LED channel letters
LED display
Meanwell ERP-200 Series LED Displays Power Supply Mechanical Specification

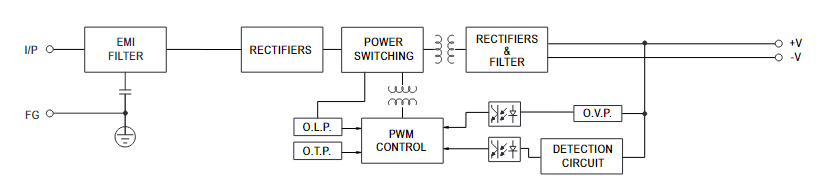

Meanwell ERP-200 Series LED Displays Power Supply Block Diagram
Meanwell ERP-200 Series LED Displays Power Supply Installation

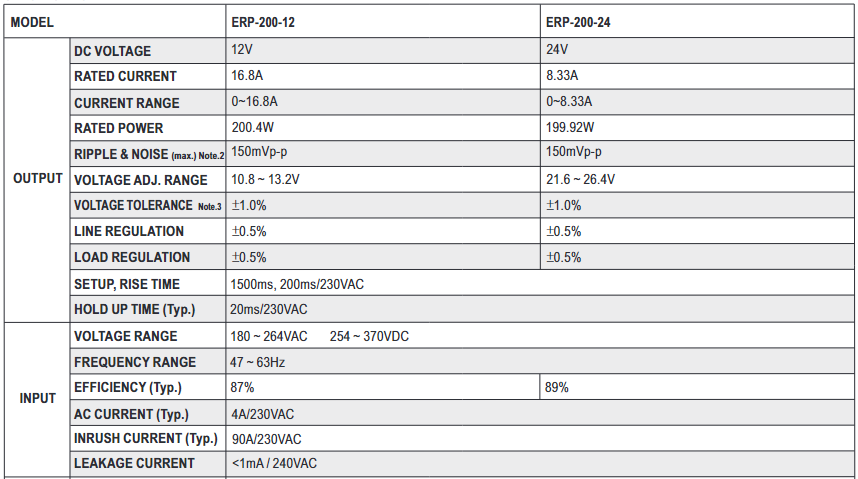

Meanwell ERP-200 Series LED Displays Power Supply Specification
Additional information
| Model Number | ERP-200-12, ERP-200-24 |
|---|
