Meanwell HDP-190 series HDP-190-3.8 HDP-190-2.8 LED displays power supply
$60.00
Get Meanwell HDP-190 series HDP-190-3.8 HDP-190-2.8 LED displays power supply from China at good prices. Led video display parts and accessories, for you to assemble, maintain or repair the stage and fixed led screen.
- Description
- Additional information
- Inquire Now
Description
Meanwell HDP-190 Series LED Displays Power Supply
190W Dual Output Enclosed LED Power Supply with PFC Function
- Universal AC input/full range
- Built-in active PFC function, PF≥0.94
- High efficiency up to 86%
- Protections: Short circuit/Overload/Over Voltage/Over Temperature
- Cooling by free air convection
- 1U low profile 36mm
- Conformal coated
- ZVS technology to reduce power dissipation
- LED indicator for power on
- 3 years warranty
Applications
LED electric display/Moving sign
LED TV wall

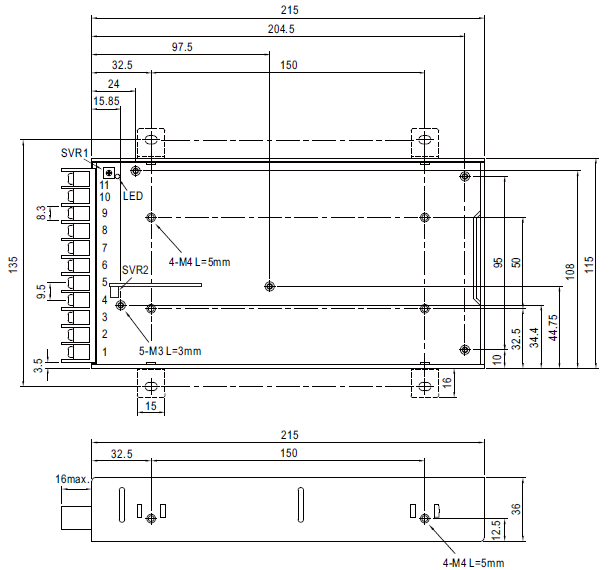

LED channel letter relates applicationsMeanwell HDP-190 Series LED Displays Power Supply Mechanical Specification
LED electric display/Moving sign
LED TV wall
LED channel letter relates applicationsMeanwell HDP-190 Series LED Displays Power Supply Mechanical Specification

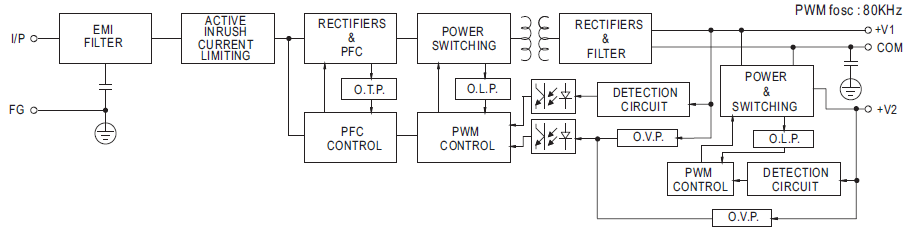

Meanwell HDP-190 Series LED Displays Power Supply Block Diagram
Meanwell HDP-190 Series LED Displays Power Supply Installation

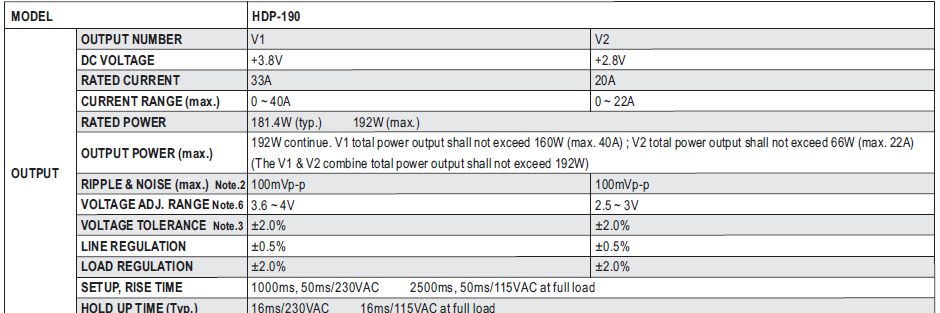

Meanwell HDP-190 Series LED Displays Power Supply Specification
Additional information
| Model Number | HDP-190-2.8 |
|---|
