Meanwell HDP-240 series HDP-240-3.8 HDP-240-2.8 LED displays power supply
$70.00
Led video display parts and accessories, for you to assemble, maintain or repair the stage and fixed led screen. Meanwell HDP-240 series HDP-240-3.8 HDP-240-2.8 LED displays power supply is for your displays.
- Description
- Additional information
- Inquire Now
Description
Meanwell HDP-240 Series LED Displays Power Supply
240W Dual Output Enclosed LED Power Supply with PFC Function
- Universal AC input/full range
- Built-in active PFC function
- High efficiency up to 84%
- Protections: Short circuit/Overload/Over Voltage/Over Temperature
- Cooling by free air convection
- 1U low profile 36mm
- Conformal coated
- Built-in cooling fan ON-OFF control
- ZVS technology to reduce power dissipation
- LED indicator for power on
- 3 years warranty
Applications
LED electric display/Moving sign
LED TV wall

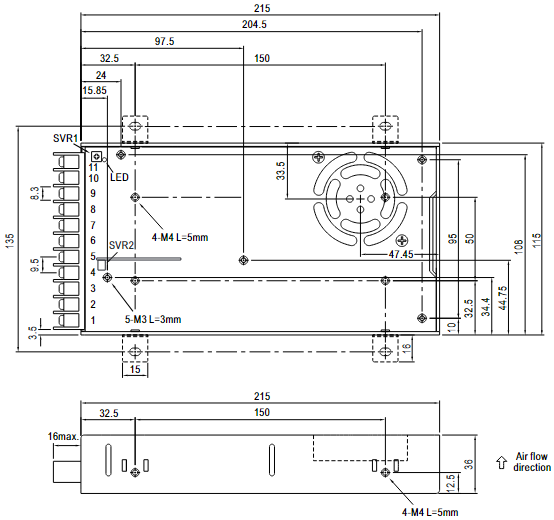

LED channel letter relates applicationsMeanwell HDP-240 Series LED Displays Power Supply Mechanical Specification
LED electric display/Moving sign
LED TV wall
LED channel letter relates applicationsMeanwell HDP-240 Series LED Displays Power Supply Mechanical Specification

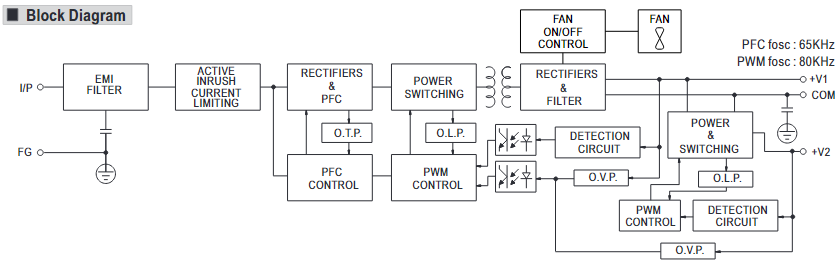

Meanwell HDP-240 Series LED Displays Power Supply Block Diagram
Meanwell HDP-240 Series LED Displays Power Supply Installation

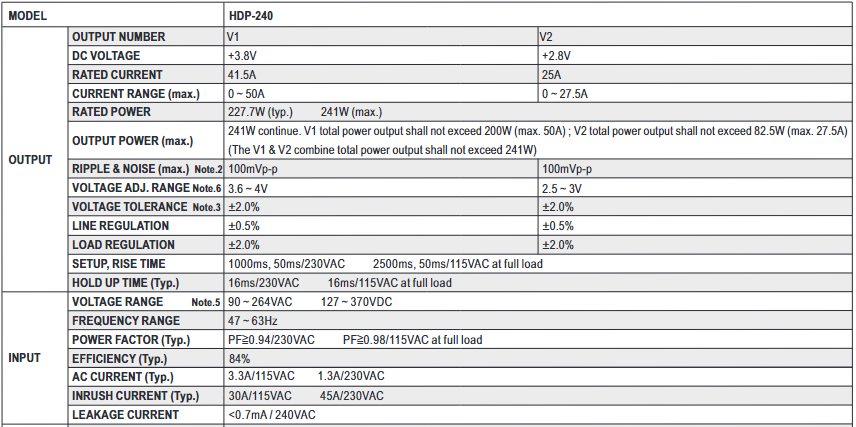

Meanwell HDP-240 Series LED Displays Power Supply Specification
Additional information
| Model Number | HDP-240-2.8 |
|---|
