Novastar LED display accessories multifunction card MFN300

Description

Nova M3 MFN300 is a multifunction card with a variety of auxiliary functions.

Multifunction Card MFN300 Description:

• 8 power switch management.

• 4 light sensor / ambient temperature sensor interface.

• Auto power control of fan / air condition / LED display based temperature.

• Audio output integrated.

• Certification: CE, RoHS.

1) RS232 serial or Gigabit Ethernet port communication;
2) Ethernet port connection between two receiving cards or at the end;
3) Timer function which is able to replace timer and delayer;
4) Temperature detection of power distribution box;
5) Humidity detection of power distribution box;
6) Audio output;
7) 4-way light sensor connection to achieve automatic brightness adjustment;
8) Temperature module connection;
9) 8-way power switch control.

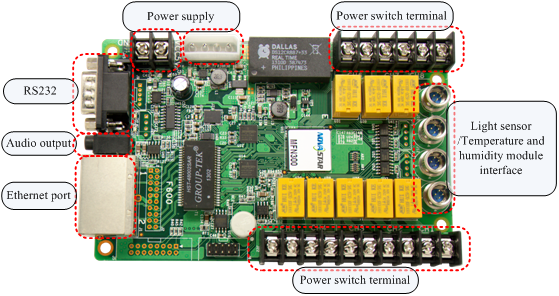

Multifunction Card Appearance

LED Sending Card Working Diagram

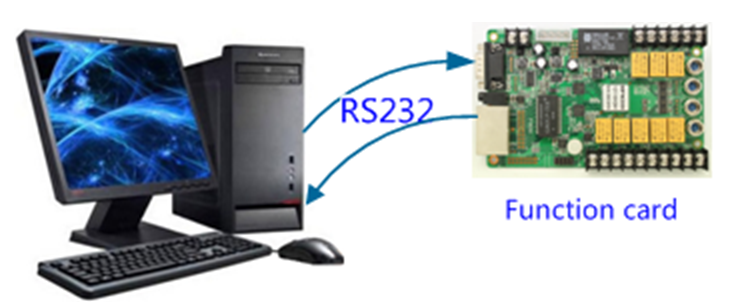

● Connect function card to computer directly by RS232 serial cable.

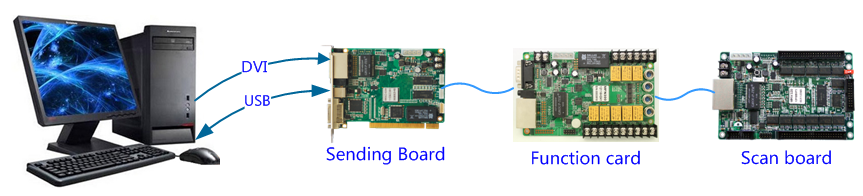

● Connect function card between sending card (or independent controller) and the first receiving card.

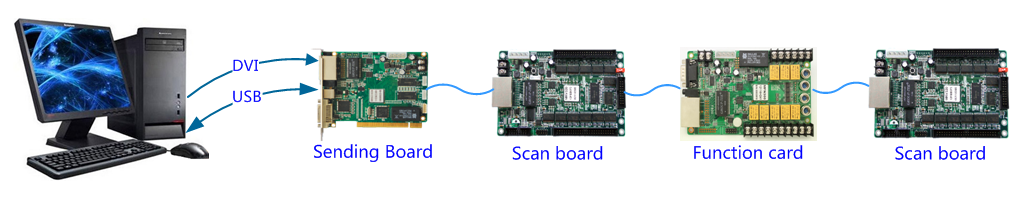

● Connect function card between any two receiving cards.

● Connect function card to the last receiving card.
