Name: Novastar LED display controller MSD300-1 MSD600-1 LED sending card
SKU: LPW-10268
Availability: InStock

Hot

Novastar LED display controller MSD300-1 MSD600-1 LED sending card Led sending card

Novastar LED display controller MSD300-1 MSD600-1 LED sending card Led sending card 2

Novastar LED display controller MSD300-1 MSD600-1 LED sending card Led sending card 3

Novastar LED display controller MSD300-1 MSD600-1 LED sending card Led sending card 4

Novastar LED display controller MSD300-1 MSD600-1 LED sending card Led sending card 5

Novastar LED display controller MSD300-1 MSD600-1 LED sending card

$110.00 – $220.00

Nova MSD300/MSD600 is standard model of Nova sending card, the yare the most popular led video wall sending cards, for indoor outdoor led displays.

SKU: LPW-10268

Model Number	MSD300-1 MSD600-1 Clear

Inquire Now

Description
Additional information
Inquire Now

Description

Nova MSD300/MSD600 is standard model of Nova sending card.

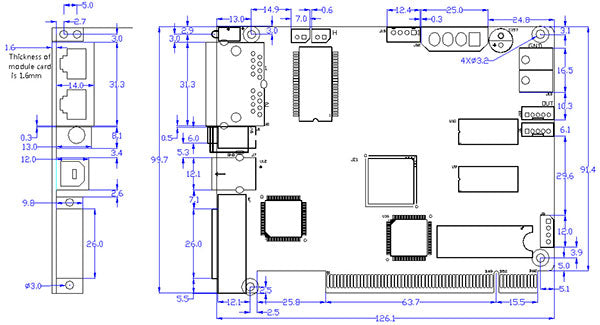

LED Sending Card Appearance

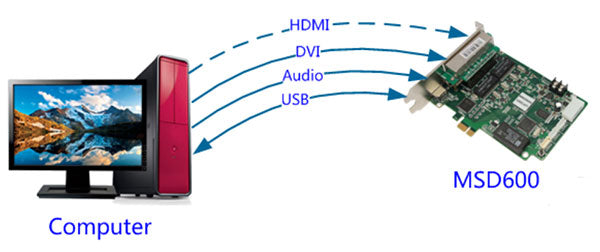

LED Sending Card Working Diagram

MSD600-1

It has the following charecterstics:
1.HDMI/DVI input;
2.HDMI/extermal audio input;
3.12bit/10bit/8bit HDvideo source;
4.Resolution supported:2048*1152,1920*1200,2560*960;
5.Resolution supported:1440*900;(12bit/10bit)
6.1 light sensor interface;
7.Cascading supported;
8.18bit gray scale processing and presentation;
9.Video format:RGB,YCrCb4:2:2,YCrCb4:4:4;

MSD300-1

1.1 DVI video input;
2.1 audio input;
3.2 Ethernet port outputs;
4.USB control interface which is able to be cascaded for uniform control;
5.Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6.1 light sensor interface.
