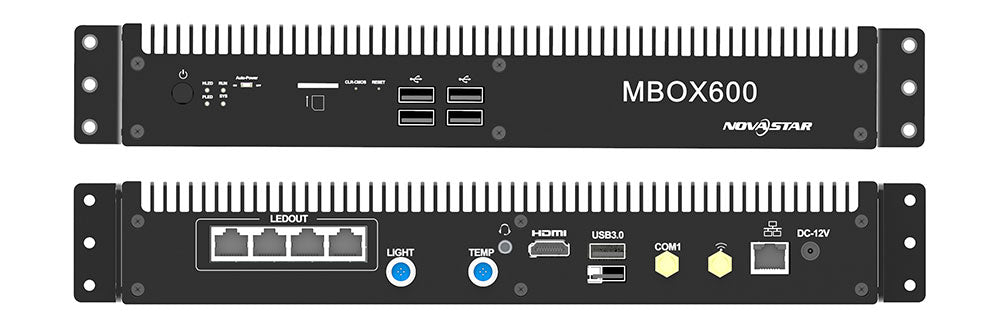

Novastar MBOX600 LED display controller LED sending box

Description

The MBOX600 is the first multimedia player that doesn’t require a PC for operation. Integrating an industrial PC with sending all in one unit, the Mbox600 is fully featured, stable and flexible, all in a compact form factor. The Mbox provides Smart Control via NovaStar’s Cloud Platform, allowing you to control your screens located anywhere in the world, from anywhere in the world. This is especially useful for fixed and billboard installations.
Loading capacity up to 2,300,000 pixels with a maximum width of 3840 pixels and maximum height of 3840 pixels
Supported common resolutions: 1440×900, 1920×1080, 1920×1200, 2048×1152, and 2560×960

Uses Intel processor
Automatic power-on
4 × USB 2.0 ports and 2 × USB 3.0 ports
1 × HDMI output
1 × Audio output
1 × Wi-Fi antenna connector
1 × Gigabit Ethernet port

Celeron 3855U: dual-core, 1.6 GHz, TDP 15W or i5-7200U: dual-core, 2.5 GHz, TDP 15 W

HDD: 64 GB or 128 GB

Linux Versions:
MBOX600(7U4A3 Linux)

Capacity:2.3 million pixels
Max power consumption:43W
Operating environment:Temperature: -20°C–60°C
Humidity: 0% RH–80% RH, non-condensing
Storage environment:-40°C–80°C
Dimensions (L ×W ×H):285.0 mm ×135.2 mm ×46.5 mm
Net Weight:1465.7g
