RGBLink MSP series signal extenders MSP314-2 MSP314-4 MSP318-4 compact 4K DVI extender set

Description

RGBLink MSP314-2 Signal extenders

Extend 2K DVI signals via Fiber optic cable with the MSP314-2 set.
This compact , transmitter receiver set plugs directly into DVI ports and is ideal for portable applications.
Integral LC ports allow connection to Fiber cables for transmission up to 300m with multi-mode Fiber or up to 2000m with single mode Fiber.
The ultimate in compact signal extension, simply power MSP318-2 from supplied plug-packs.
Resolutions up to 2560×816@60Hz are supported with EDID capture available via push-pin.
MSP 314-2 is an ideal solution to extend DVI befween remote source and displays or other devices.

• Plug directly into DVI ports
• Extend DVI up to 2000m with Fiber
• Easy Capture EDID
• Support for 2K signals

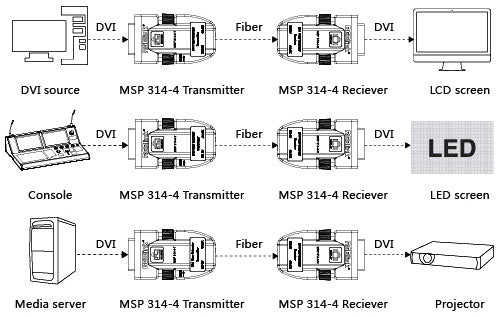

RGBLink MSP314-4 Signal extenders

Extend DVI via Fiber optic cable with the MSP314-4 set.
This compact , transmitter receiver set plugs directly into DVI ports avoiding the need for additional rack space or shelving with MSP314-4 being ideal for portable applications.
MSP314-4 features integral LC ports – simply connect to a Fiber cable for transmission up to 300m with multi-mode Fiber or up to 2000m with single mode Fiber.
Power MSP318-4 from supplied plug-packs.
Resolutions up to 3840×2160@30Hz are supported with EDID copy available via push-pin.

• Plug directly into DVI ports
• Extend DVI up to 2000m with Fiber
• Easy Capture EDID
• Support for 4K signals

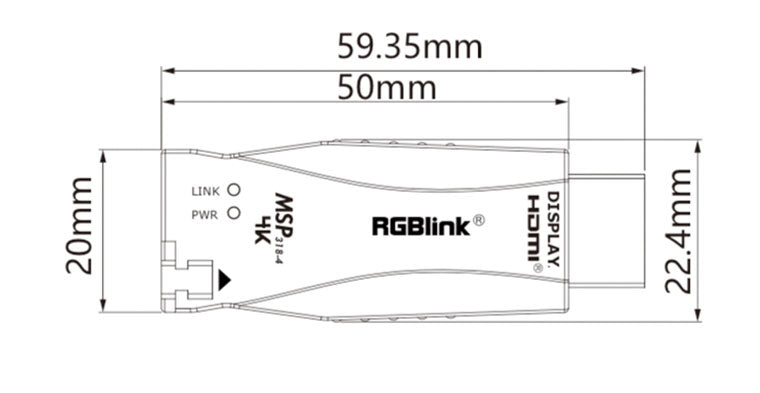

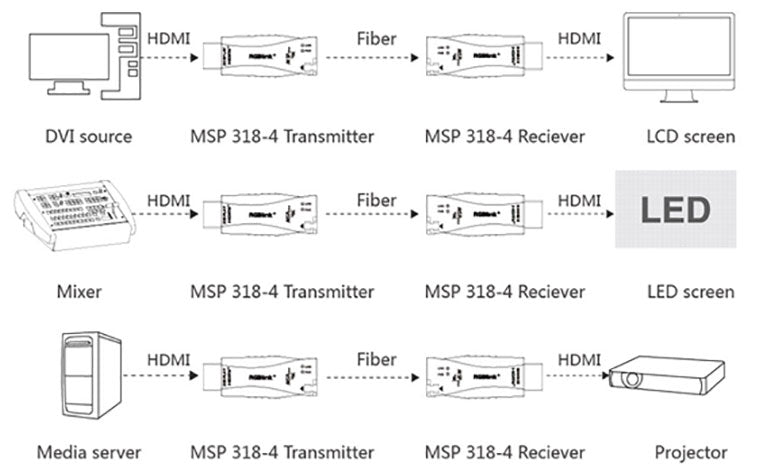

RGBLink MSP318-4 Signal extenders

Extend HDMI beyond usual limits with the MSP318-4 Fiber extender set.
Plug the transmitter directly into an HDMI source, and connect to either single or multi mode Fiber optic cable.
Similarly connect the receiver directly into an HDMI port on a display or downstream device.
Just connect to low voltage power supply (included) at each end, MSP318-4 is truly compact and ideal for portable applications or where there is restricted space.
MSP314-4 features integral LC ports – simply connect to a Fiber cable for transmission up to 300m with multi-mode Fiber or up to 2000m with single mode Fiber.
HDCP compliant, resolutions up to 3840×2160@30Hz are supported with EDID management available via micro USB.

• Compatible with resolution up to 3840X2160@60 (YCbCr420)
• Extend HDMI up to 2000m with Fiber
• EDID Management via USB
• Support for 4K signals
