RGBlink RMS 8424S rack mounting standard LCD monitor LED screen broadcast monitor
$1,000.00 – $1,200.00
RMS 8424S is a 19in 4RU standard rack mounting LCD monitor for your indoor and outdoor led display screens, with 2 high resolution 8.4in LCD panels of independent input controlling, 1024×3(RGB)×600, and wide viewing angle for the video performance.
- Description
- Additional information
- Inquire Now
Description
RGBlink RMS 8424S Rack Mounting Standard LCD Monitor
RMS 8424S is a 19in 4RU standard rack mounting LCD monitor, with 2 high resolution 8.4in LCD panels of independent input controlling, 1024×3(RGB)×600, and wide viewing angle.
Each monitor of RMS 8424S accepts 1 3G/HD/SD-SDI, 1 DVI, 1 VGA, and 1 Composite video, each input with loop through output. Support SDI and HDMI embedded audio output.
RMS 8424S has a 2-pin pole 12V DC power connector for all the 2 LCD panels.
- Standard 4 unit rack mount size
- 8 inch LCD ×2
- 1024×3(RGB)×600
- 16:9 / 4:3 adjustable
- 3G/HD/SD-SDI, DVI, VGA, Composite video
- SDI embedded audio output via 3.5mm earphone socket
- HDMI embedded audio output via 3.5mm earphone socket
- Max input resolution 2048 x 1152 or 2560 x 816
- Underscan / Overscan switch
- Viewangle adjustable structure

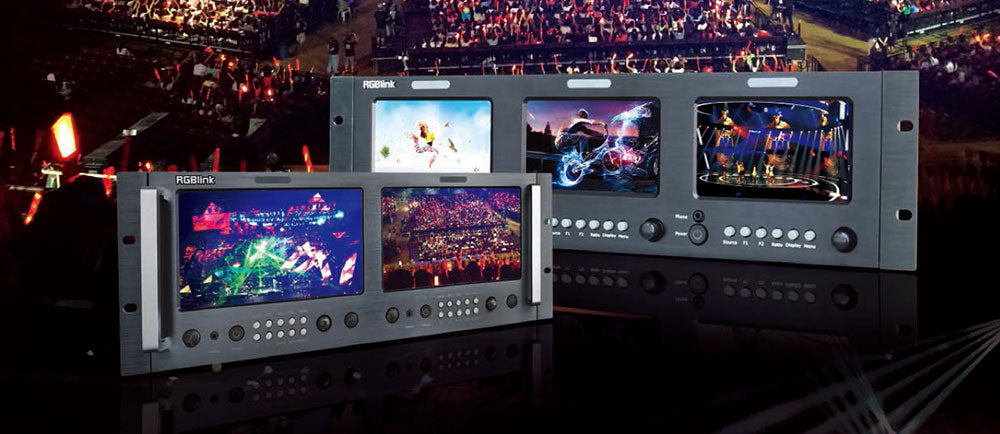

Rack Mounting Standard LCD Monitor Appearance

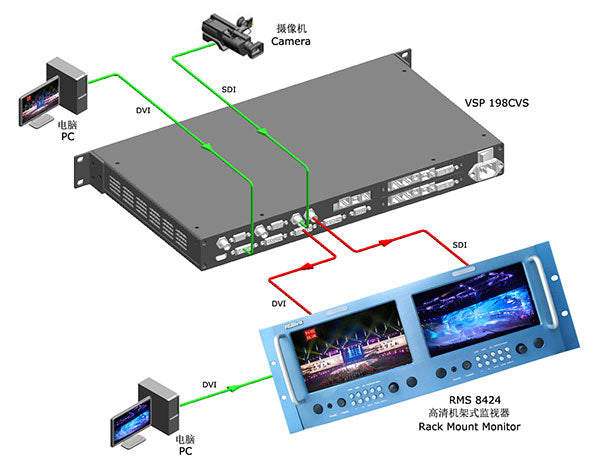

Rack Mounting Standard LCD Monitor Working Diagram
R
GBlink RMS 8424 S Rack Mounting Standard LCD Monitor
| nput | 1 x DVI (HDMI1.3) |
| 1 x CVBS | |
| 1 x VGA (Via DVI+VGA IN port) | |
| 1 x SDI (3G/HD/SD-SDI module) | |
| Loop Out | 1 x DVI (HDMI1.3) |
| 1 x CVBS | |
| 1 x VGA (Via DVI+VGA LOOP port) | |
| 1 x SDI (3G/HD/SD-SDI module) | |
| Net Size | 480mmx172mmx114.3mm |
| Package size | 545mmx240mmx170mm |
| Net weight | 3.4kg |
| Package weight | 5.0kg |
| Work Temperature | 0°C~40°C |
| Relative Humidity | 10%~85% |
Additional information
| Model Number | RMS 8424, RMS 8424S |
|---|
