VDWall LED display controller LVP300 LED video processor
$220.00
Discover VDWall LED display controller LVP300 from best led video wall supplier in China, for your indoor outdoor stage background or fixed led displays at good prices.
- Description
- Inquire Now
Description
LVP 300 LED HD Video Processor
3 Modes of user-defined PIP/POP display.
Five languages:Chinese,English,Russian,Spanish
1.Faroudja® Real Color®True color image processing,，Faroudja® DCDI interlacing video processing，Faroudja® TureLife™video enhancement
2. Three custom dual screen mode, a key switch between modes, arbitrary PIP (PIP / PBP) display.
3.Seamless switch, fade in and fade out switch.
4.Switching mode：One key switch and preselection+Take switch
5.Support menu in five languages: Chinese, English, Russian, Spanish and Korean
6.A variety of control methods: panel buttons, computer software, flexible and convenient operation.
7.A pc of sending cards can be built in.
8. 24/7 applications, high reliability, stability
- Feature one:Seamless switch,fade in and fade out switch

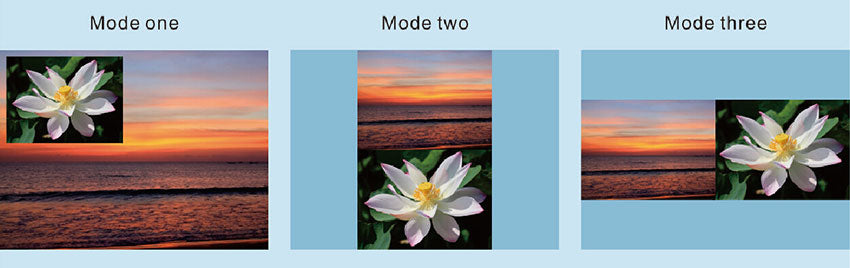

- Feature two:3 modes of user-difined PIP/POP display

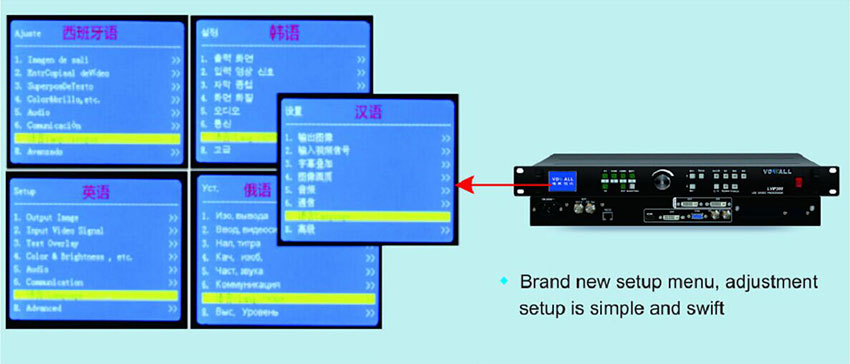

- Feature three:Support memu in five languages,Chinese,English,Russian,Spanish and Korean
Large venue display application such as:Rental Performacne,TV broadcast center,Stage Enterainment&Theater,High-end Meetings&Exhibitions etc.

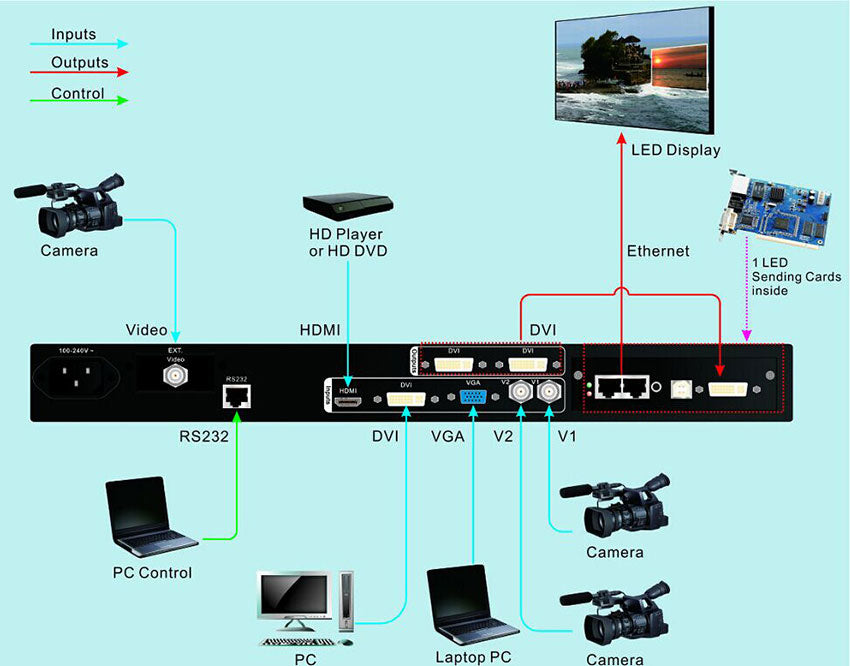

● LVP 300 connection diagram
| Input signal | ||
| Type / quantity | 2×Video
1×VGA（VESA） 1×DVI（VESA） 1×HDMI（VESA/CEA-861） 1×EXT.（Extension card: Video/DVI-I/SDI/USB） |
|
| Video system | PAL/NTSC | |
| Composite video amplitude impedance | 1V（p_p）/ 75Ω | |
| VGA format | PC（VESA） | ≤2048×1152 _60Hz |
| VGA Amplitude impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI format | PC（VESA） | ≤1920x1200_60Hz |
| HDMI format（HDCP1.3） | PC（VESA） | ≤2304x1152_60Hz |
| HDMI1.3（CEA -861） | ≤1920x1080p_60Hz | |
| input terminal | Video： BNC/ 75Ω VGA：15pin D_Sub(female) DVI：24+1 DVI_D HDMI：HDMI terminal A class |
|
| output signal | ||
| Type / quantity | 2×DVI | |
| DVI resolution ratio | 1024×768_60Hz/75Hz
1280×1024_60Hz/75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz |
|
| Output terminal | DVI：24+1 DVI_D | |
| others | ||
| Control terminal | RS232 | |
| input voltage | 100-240VAC 50/60Hz | |
| Maximum power consumption | ≤25W | |
| ambient temperature | 0-45 ℃ | |
| ambient humidity | 15-85% | |
| Size (packing) | mm（H）×mm（W）×mm（L） | |
| weight | gross weight： Kg, net weight： Kg | |
| Standard accessories | 1.5M power line×1 1.5M DVI connecting line×1
0.5m DVI connecting line×1 1.5m Serial port transfer line×1 |
|
| optional add-on | Sending card×1 | |
300/LVP300 Authenticate
