VDWall LED display controller LVP515 LED video processor
$550.00
Vdwall professional LED video controller, is designed specially to meet the needs for rental and street led displays, buy VDWall LED display controller LVP515 LED video processor from China.
- Description
- Inquire Now
Description
LVP 515 LED Video Processor
Seamless Switching,
Fade-in / Fade-out switching
Blend switching in random input signals
HD Text, Flash, Graphics & Logo Overlay
1.10+ Bit Faroudja® DCDI Cinema Processing
2.New Faroudja® Real Color® processor
3.Faroudja® TureLife™ Video Enhancer
4.Seamless switch , fade in fade out, blend.
5.Frame synchronous technology, no miss alignment or delay
6.PIP/PBP display in any size and in any place

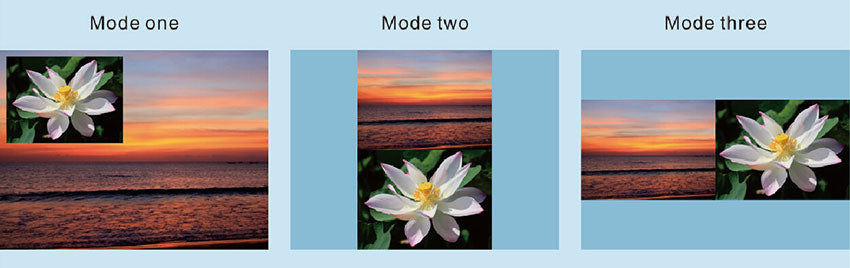

7.3 custom PIP/POP display modes, which can be switched by pressing one button
8.User define DVI EDID to realize point-to -point display.
9.User define output format to reach maximal horizontal width 3840 or vertical height 1920.
10.2 channels can be configured to connect external stereo audio, plus HDMI and SDI audio, there are 4-channel audio for synchronous switch
11.2 LED Transmission Cards Built-in ability (sending cards are optional)
- Feature one : Fade-in / Fade-out
- Feature two : PIP, POP, Text overlay

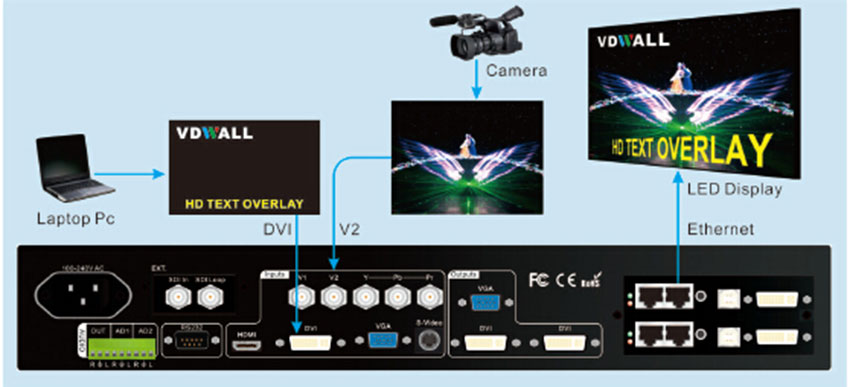

- Feature three :HD text overay
| Outputs | ||
| Nums/type | 1×VGA（RGBHV）
2×DVI |
|
| DVI format | 1024×768_60/75Hz
1080×1920_60 Hz 1200×1600_60 Hz 1280×1024_60/75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60 Hz 1600×1200_60Hz 1920×1080_50/60Hz 1920×1200_60 Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom output format( horizontal pixel maximal 3840 or vertical 1920） |
|
| VGA scope/impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| Output ports | VGA OUT：15pin D_Sub(female)
DVI OUT1：24+5 DVI_D DVI OUT2：24+1 DVI_D |
|
| others | ||
| control | Panel button or pc software | |
| Input voltage | 100-240V~ 50/60Hz | |
| power | ≤20W | |
| temperature | 5-40 ℃ | |
| humidity | 15-85% | |
| Size(packing) | 145mm（height）×370mm（width）×535mm（length） | |
| Weight(kg) | Gross weight：5.0Kg, Net weight：3.2Kg | |
515/LVP515 Authenticate
