VDwall LVP7000 series led display controller LVP7021 LVP7042 led video processor
$1,580.00 – $2,580.00
VDwall LVP7000 series led display controller is for rental stage screens,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch), stage entertainment & theater, high-end meetings& exhibitions etc.
- Description
- Additional information
- Inquire Now
Description
LVP7000 Multi-window Video Wall Processor
High integration
16 preset display modes
Support data import and export
For VDWall LVP7000 mulit-window processor, there are two options, LVP7021(2 input cards and 1 output card) and LVP7042(4 input cards and 2 output cards).
LVP7021 inputs: 2×CVBS,2×VGA(RGBHV), 2×DVI(VESA/ CEA-861),2×SDI(SDI/HD-SDI/3G-SDI） LVP7021 outputs: 4xDVI.
LVP7042inputs: 4×CVBS,4×VGA(RGBHV), 4×DVI(VESA/ CEA-861),4×SDI(SDI/HD-SDI/3G-SDI） LVP7042 outputs: 8xDVI.
1.Highly integrated video processor with varieties of advanced image.processing technologies:Seamless switching, Sync-output cropped images, Multi-window display by image overlay etc
2.Supports SD and HD, Analog and Digital Video Inputs:
4×CVBS 4×VGA
4×DVI（HDMI） 4×SDI（SD-SDI / HD-SDI / 3G-SDI）
3.Per pixel Motion Adaptive De-interlacing processing by Faroudja DCDi
4.8 DVI Outputs, Each one has the resolution up to 1920 x 1200_60Hz
5.Output width up to 20480 pixels or output height up to 9600 lines by one LVP7000
6.Device Aided calculation of the cropped image’s size and position
7.Fully CrossPoint high bandwidth video switching
8.Ture seamless switching and Fade-in/Fade-out switching to any one of input signals
9.Backup or Restore the device settings and adjustment data by a PC
10.24/7 Application, stable and reliable
Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch),Stage Entertainment & Theater,High-end Meetings& Exhibitions etc.

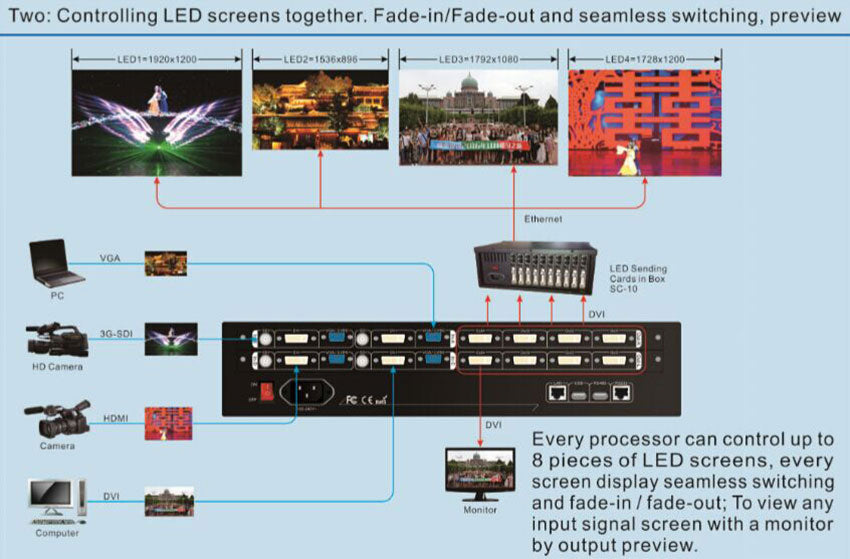

● LVP7000 connection diagram
| Input signal index | ||
| Type/Quantity | 4×CVBS 4×VGA（RGBHV） 4×DVI（VESA/ CEA-861） 4×SDI（SDI/HD-SDI/3G-SDI） |
|
| Video standard | PAL/NTSC | |
| Composite Video
Scope/Impedance |
1V（p_p）/ 75Ω | |
| VGA format | PC（VESA） | ≤1920×1200_60Hz |
| VGA Scope/Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI format | PC（VESA） | ≤1920×1200_60Hz |
| HDMI-1.3（CEA-861） | ≤1920×1080_60Hz | |
| SDI format | SMPTE 259M
SMPTE 292M |
480i_60Hz
576i_50Hz 720p、1080i、1080p |
| Input port | CVBS：VGA socket P4 VGA：15pin D_Sub(female) DVI：24+1 DVI_D SDI：BNC/ 75Ω |
|
| Output signal index | ||
| Type/Quantity | 8×DVI | |
| Preview output | 1×DVI(one channel of Out_K or Out_L is optional as preview output) | |
| DVI resolution | 1024×768_60Hz1280×1024_60Hz
1920×1080p_60Hz1920×1200_60Hz |
|
| Output port | DVI：24+1 DVI_D | |
| Others | ||
| Control port | RS232/USB/LAN | |
| Input Voltage | 100-240VAC 50/60Hz | |
| Maximum power consumption | ≤80W | |
| Operating Temp | 0-45 ℃ | |
| Humidity | 15-85% | |
| Dimensions（Product） | 482.6(length) x 300(width) x 89(height)mm | |
| Dimensions（Package） | 540(length) x 400(width) x 180(height)mm | |
| Weight（N.W.） | 6Kg | |
| Weight（G.W.） | 9Kg | |
Authenticate
Additional information
| Model Number | LVP7021, LVP7042 |
|---|
