VDwall LVP909 series led display controller LVP909 909F led video processor
$960.00 – $1,120.00
Get VDwall LVP909 series led display controller from Led display factory in China at low price, for your stage flexible and wall mounted led video walls.
- Description
- Additional information
- Inquire Now
Description
LVP909 Series LED HD Video Processor
4 windows in any size and overlay display,Wireless Wi-Fi control+ Wi-Fi video feedback monitor.
1.Seamless switching,fade in fade out swtiching between any inputs. Multiple mixed analog and digital inputs including 2*Video、1*VGA、1*HDMI、1*DVI、1*SDI/HD-SDI/3G-SDI；
2.“TAKE” fast switching.
3.Four sets of preset PIP display mode: seamless or fade in fade out between modes switching.
4.windows in any size and overlay display. Display 4 input signals picture at the same time.Each picture size, position and overlay order are adjustable.
5.Preview monitor+sync monitor
6.Wi-Fi wirless control+ Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing APP software in handheld device to monitor input signals. Meanwhile,wireless Wi-Fi controls the device to switch signals and call modes.
LVP909 series product model description
*LVP909 without Wi-Fi module,LVP909F with Wi-Fi module.
- Feature one:4 windows in any size and overlay display
- Feature two:Wirelwss WI-FI control +WI-FI video feedback monitor

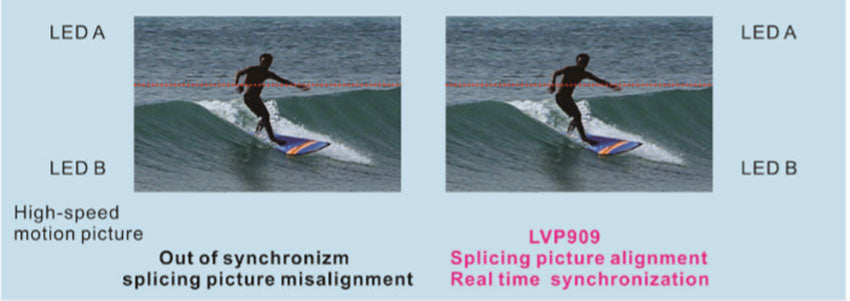

- Feature three:Frame synchronous technology,no misalignment in high-speed motion pictures
For indoor and outdoor ultra big,abnormal LED screen splicing display;rental,staging,theatre performance LED screen and other fixed installations.

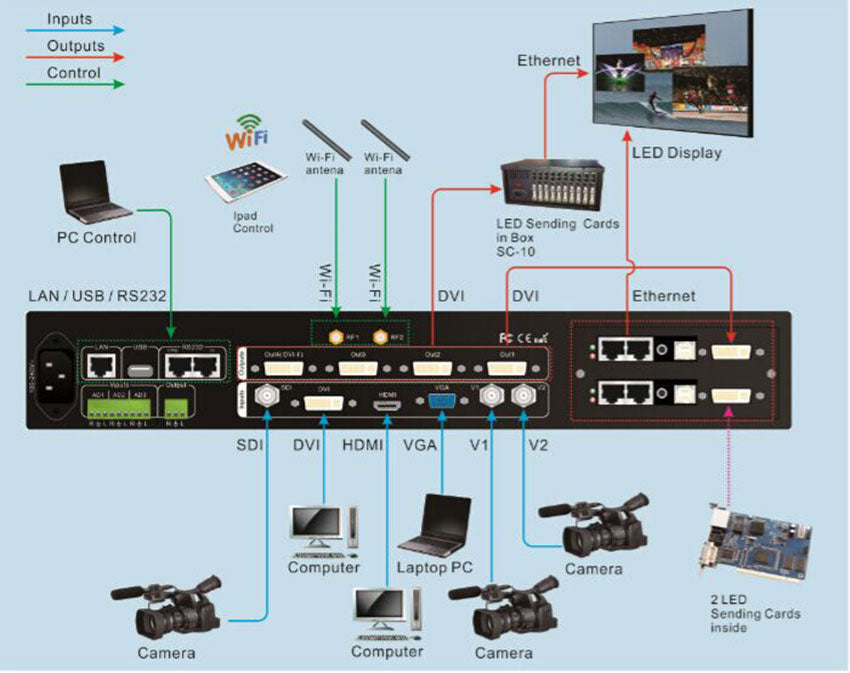

● LVP909 connection diagram
| Input signals | ||
| type/nums | 2×Video 1×VGA（RGBHV） 1×HDMI（VESA/ CEA-861） 1×DVI（VESA/ CEA-861） |
|
| Video system | PAL/NTSC | |
| composite video scope/ Impedance | 1V（p_p）/ 75Ω | |
| VGA format | PC（VESA standard） | ≤1920×1200_60Hz |
| VGAscope/ Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI format | PC（VESA standard） | ≤1920×1200_60Hz |
| HDMI-1.3（CEA-861） | ≤1920×1080p_60Hz | |
| SDI format | SMPTE 259M-C
SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz
576i_50Hz 720p、1080i、1080p |
| Input ports | Video：P4 of VGA port VGA：15pin D_Sub( female) HDMI：A type of HDMI port DVI：24+1 DVI_D |
|
| Output signals | ||
| type/nums | 1×VGA
4×DVI |
|
| Preview output | 1×VGA（DVI OUT4） | |
| DVI resolution | 1024×768_60Hz1280×1024_60Hz
1920×1080p_60Hz1920×1200_60Hz |
|
| Output port | DVI：24+1 DVI_I | |
| others | ||
| Control ports | Front panel /RS232/USB/LAN/WIFI | |
| Input voltage | 100-240VAC 50/60Hz | |
| power | ≤80W | |
| temperature | 0-45℃ | |
| humidity | 15-85% | |
| size | 483 (L) x274(W) x66.6 (H)mm | |
| Weight | G.W.：5.5 Kg, N.W.：4.2Kg | |
Authenticate
Additional information
| Model Number | LVP909, LVP909F |
|---|
